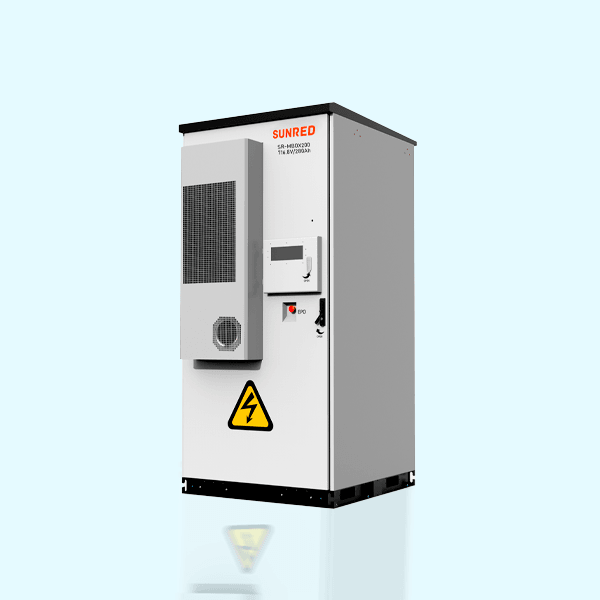

C&I Battery SR-BOX200
The C&I Battery SR-BOX200 system is designed for outdoor use of high voltage battery systems, with industrial air conditioning to regulate the system temperature, so that the system is in the appropriate temperature range. It has 0.5C times charging and discharging capability, and the integrated intelligent BMS system is widely compatible with multi-brand PCS, which is more suitable for medium-sized industrial and commercial application scenarios.
For example, increasing solar self-consumption, providing backup power or peak shifting, etc.
Model: SR-BOX200
Battery Parameter
Battery Capacity (kWh): 215
Cell Type/V/Ah: LiFePO4 3.2/280
Battery Module Capacity (kWh): 14.336
Number of Models: 15pcs(10~15pcs Option)
Rated Voltage (V): 768
Voltage Range (V): 672-864
Battery System Configuration: 1P240S
Charge and Discharge Rate ≤0.5P
Cooling Mode: Air cooling/3kW
General Parameter
System Efficiency: ≥ 94%
Operating Temperature Range (℃): -20-50
Operating Humidity: 5%-95%R.H
IP Rating: IP55
Anticorrosion Grade: Standard C4
Altitude (m): <3000
Dimension W*D*H (mm): 1050*1190*2339
Weight(T): 2.3
Disposition: With screen
Firefighting System: Integrated/Aerosol
Communication Port: CAN, RS485, ETH
Compliance
Certification: IEC62619/CECE-EMCUN38.3/UN3480/MSDS
Economical & Efficient
● High energy efficiency
● Pre-assembled, transportation of complete
● High-efficiency heat dissipation, increase battery life and system discharge capacity
Real-time monitoring and control
● 7*24h Real-time remote and local monitoring and control
● Intelligent early warning, regular automatic safety checks, and eliminationof hidden dangers
Safety & Reliable
● Multi-stage overcurrent breaking, no blind spot for electrical protection
● Integration of fire protection, a full range of multiple fire protection, to prevent fire explosions
● Waterproof and anticorrosive, cabinet IP55 level protection, outdoor multi-environmental application, 15 years of reliability
